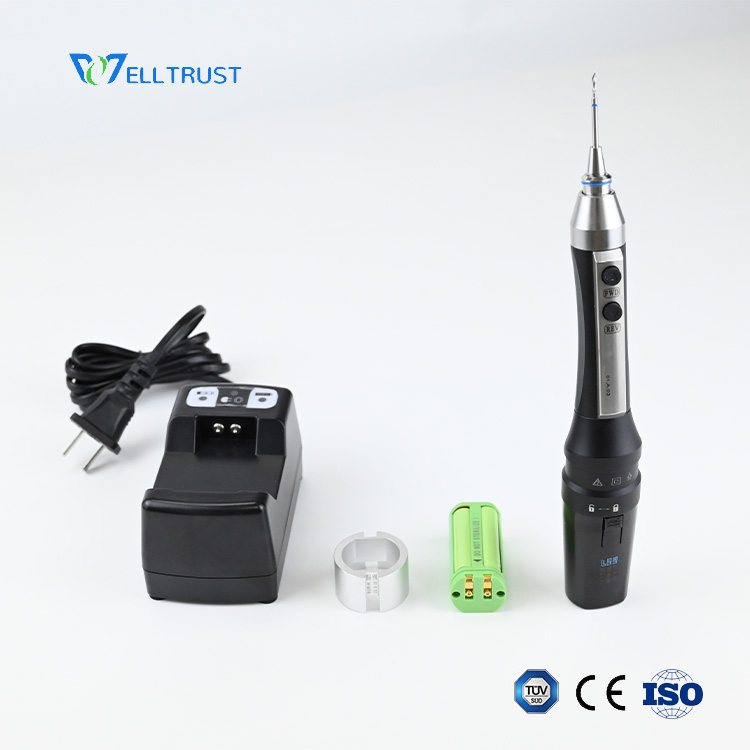

BP140 Veterinary Single-function Pen Drill

BP140 Veterinary Single-function Pen Drill for Small-Bone Orthopedic Procedures

The BP140 is a compact single-function pen drill designed for selected veterinary orthopedic and small-bone procedures. Its streamlined pen-style handpiece gives trained veterinary professionals a focused drilling platform for procedures that require a dedicated drill rather than a multifunctional drill-and-saw system.

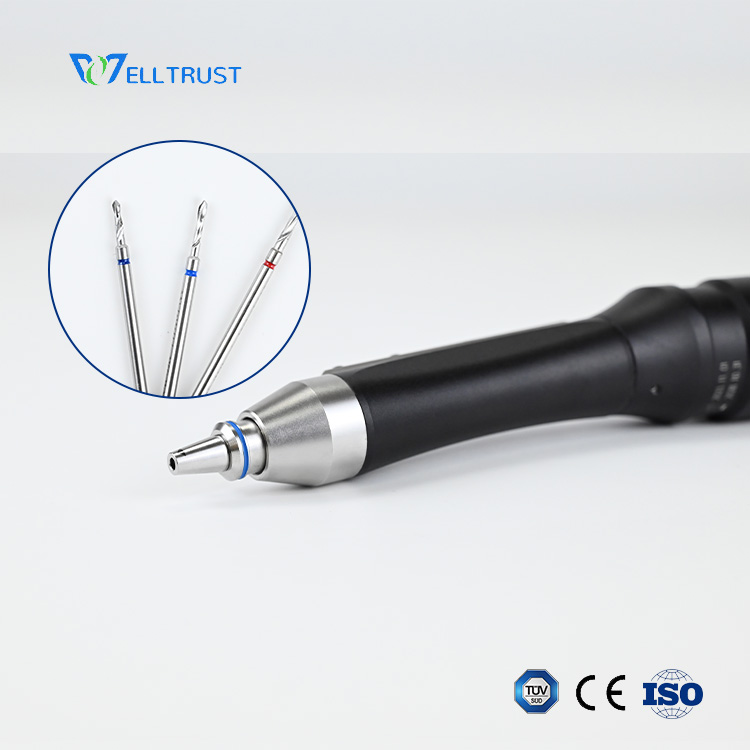

The BP140 operates at a listed speed of 1,500 rpm and has a 2.3 mm chucking range. This configuration is suitable for compatible small-diameter drilling accessories used during selected veterinary orthopedic, trauma and small-bone workflows.

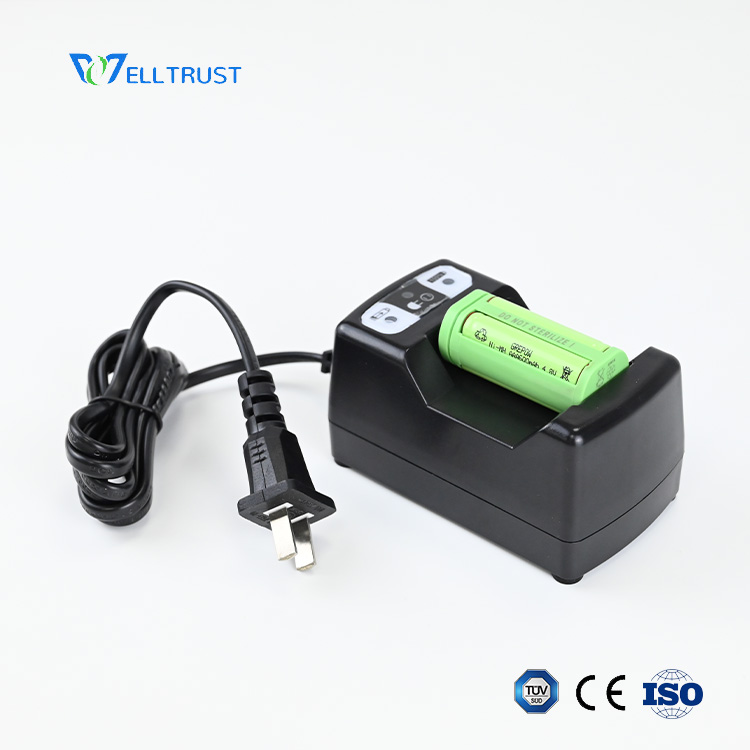

The compact handpiece format supports controlled handling in areas where a smaller powered instrument is preferred. The product information specifies a noise level of no more than 55 dB and an IPX4 waterproof level. The battery configuration is listed as 300/600 mAh Ni-MH.

BP140 interface options shown for the system include AO, Aesculap, Anspach and Stryker types. These options support configuration discussions for veterinary hospitals, distributors and professional procurement teams that use different orthopedic power-tool interfaces.

Well Orthopedic supplies veterinary orthopedic power tools, implants, external fixation systems, orthopedic instruments and related surgical equipment. Our team supports product selection, interface discussion, quotation preparation and the coordination of related veterinary orthopedic products for animal hospitals, distributors and professional procurement teams.

Before use, inspect the handpiece, battery and selected accessory. Operate the BP140 according to the applicable instructions for use, and follow the validated cleaning, disinfection, storage and instrument-processing procedures for each component.

Technical Specifications

Frequently Asked Questions

1. What is the BP140 Single-function Pen Drill?

BP140 is a compact veterinary orthopedic pen drill designed for focused drilling functions in selected small-bone, trauma and orthopedic procedures.

2. What is the BP140 operating speed?

The operating speed is 1,500 rpm.

3. What is the BP140 chucking range?

The chucking range is 2.3 mm for compatible drilling accessories.

4. What battery configuration does BP140 use?

The product information lists a 300/600 mAh Ni-MH battery configuration.

5. What is the noise level of the BP140?

The listed noise level is no more than 55 dB.

6. What does the IPX4 rating indicate for BP140?

BP140 is specified with an IPX4 waterproof level. Users should still operate, clean and store the drill according to the applicable instructions for use and facility procedures.

7. Which interface types are available?

The interface types shown for the BP140 system include AO, Aesculap, Anspach and Stryker options.

8. What veterinary procedures can BP140 support?

BP140 can support selected veterinary small-bone, orthopedic and trauma workflows that require a dedicated drilling function. The veterinary professional selects the appropriate accessory and technique for each case.

9. Is BP140 a multifunctional drill and saw system?

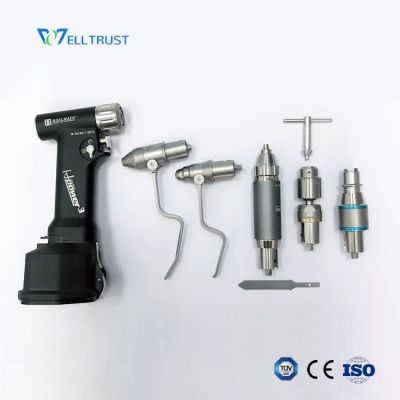

No. BP140 is positioned as a single-function pen drill. A multifunctional drill-and-saw system may be selected when a procedure requires drilling, reaming, wire driving and saw functions in one platform.

10. Can Well Orthopedic support BP140 configuration and quotation?

Yes. Well Orthopedic can support interface selection, product comparison, quotation preparation and related veterinary orthopedic power-tool supply.

11. How should BP140 be processed after use?

Clean, inspect and process the handpiece and compatible accessories according to the manufacturer's current instructions and the veterinary facility's validated instrument-processing protocol. Follow the applicable battery handling and storage requirements.
